Innocraftsman™ Mini Drill Press
Innocraftsman™ Mini Drill Press
Couldn't load pickup availability
PERFECT FOR PRECISION WORK
Ideal for tasks requiring fine detail and accuracy, such as watch repair, printed circuit board drilling, jewelry making and more. A must-have tool for both hobbyists and professionals!
COMPLETELY STABLE DRILLING
HIGH-PRECISION DRILLING WITH NO BIT RUNOUT
HOW TO ASSEMBLE AND USE
AVAILABLE IN 4 VERSIONS:

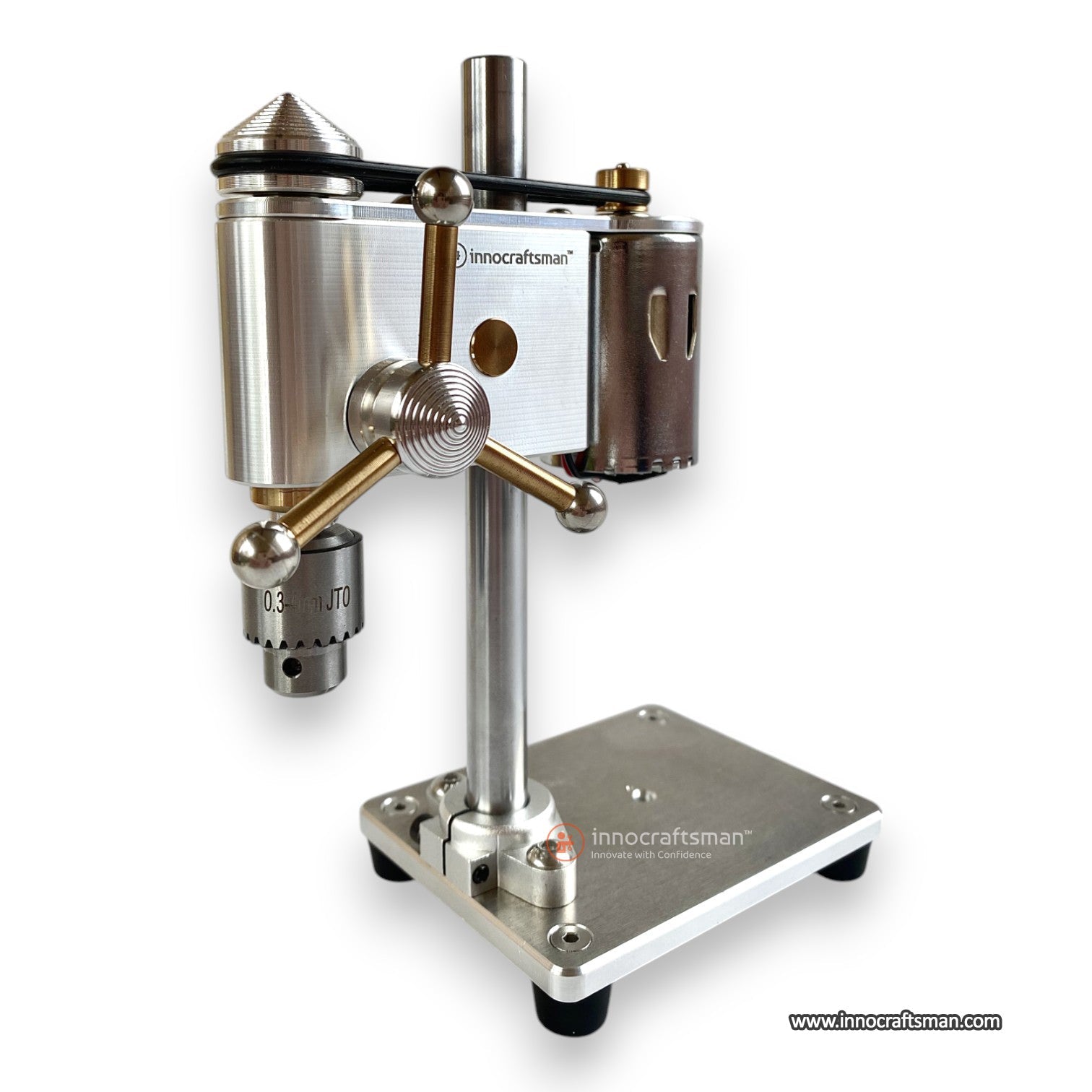

UNIVERSAL 0.3-4mm 12V MODEL:
This option offers a wider clamping range 0.3-4mm and has an accuracy of approximately 0.05mm, making it versatile for various drill bit sizes
Specification:
- Belt type: rubber belt
- Clamping range: 0.3-4mm
- Drill runout: 0.05mm
- Product size: 100 * 80 * 180mm
- Max clearance between drill chuck and base: 100mm
- Weight: 800g
- Column Diameter: 13mm
-
Column (Rod) Length: 165mm (extended 200mm rod is available separately)
- Drilling stroke: 13mm
- Height to workbench: 70mm
- Power supply (included): 3-12v / 2A (adjustable)
- Speed: 200-4800 RPM
- Voltage: 100-240V
Collet 3.175mm 12V MODEL:
This model is specifically designed for drill bits with a shank diameter of 3.175mm (like this one). It provides higher precision with an accuracy of within 0.02mm, ensuring stable and accurate drilling, ideal for delicate tasks like watch repair.
Specification:
- Belt type: rubber belt
- Clamp: 3.175mm
- Drill runout: 0.02mm
- Product size: 100 * 80 * 180mm
- Max clearance between drill chuck and base: ~100mm
- Weight: 800g
- Column Diameter: 13mm
-
Column (Rod) Length: 165mm (extended 200mm rod is available separately)
- Drilling stroke: 13mm
- Height to workbench: 70mm
- Power supply (included): 3-12v / 2A (adjustable)
- Speed: 200-4800 RPM
- Voltage: 100-240V

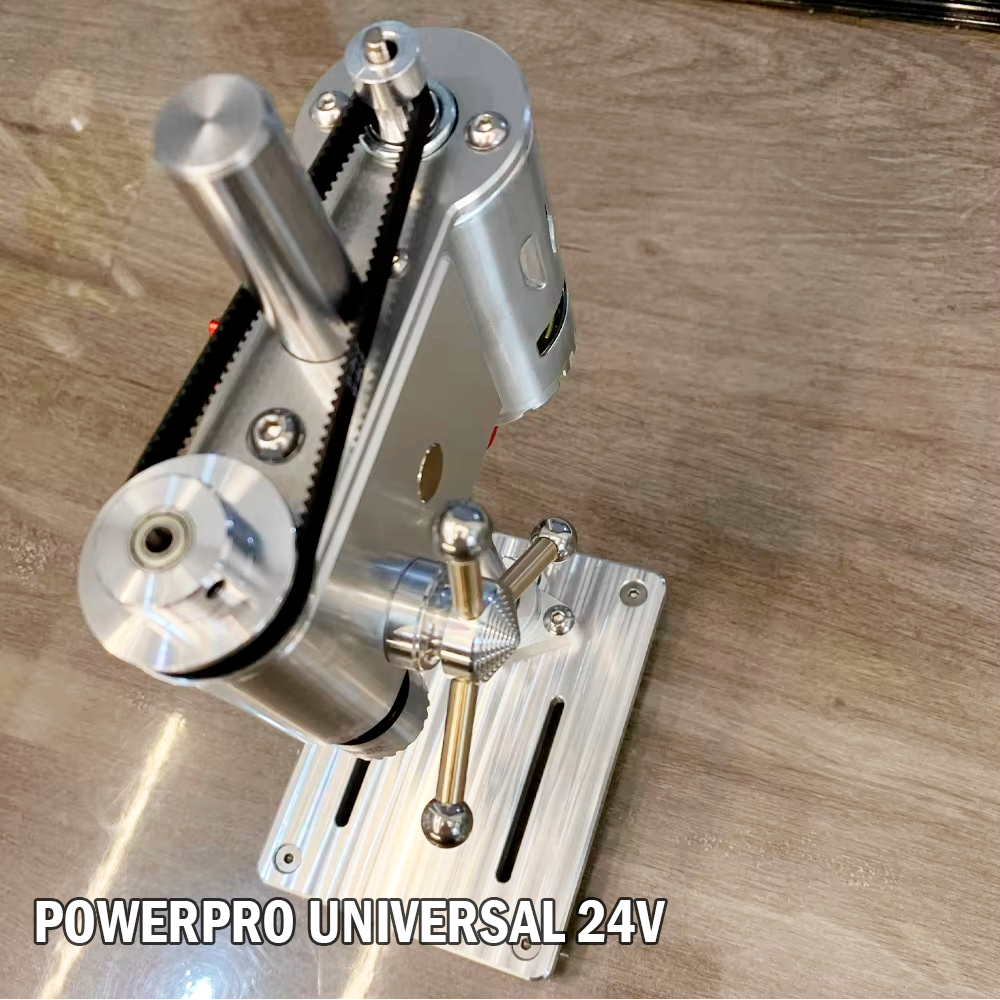

PowerPro UNIVERSAL 24v (Synchronous Belt) MODEL:
It’s built for more complex tasks and handles tougher materials with ease, thanks to its powerful motor and gear-belt drive. With a voltage range from 3 to 24V and a clamping range of 0.3 to 6.5mm, this tool is ideal for precision work as well as demanding projects.
Specification:
- Belt type: synchronous belt
- Clamping range: 0.3-6.5mm
- Drill runout: 0.05mm
- Product size: 120 * 90 * 200mm
- Max clearance between drill chuck and base: ~120mm
- Weight: 1300g
- Column Diameter: 16mm
- Column (Rod) Length: 200mm (extended 230mm rod is available separately)
- Drilling stroke: 19mm
- Height to workbench: 70mm
- Power supply (included): 3-24v / 2A (adjustable)
- Speed: 200-4800 RPM
- Voltage: 100-240V

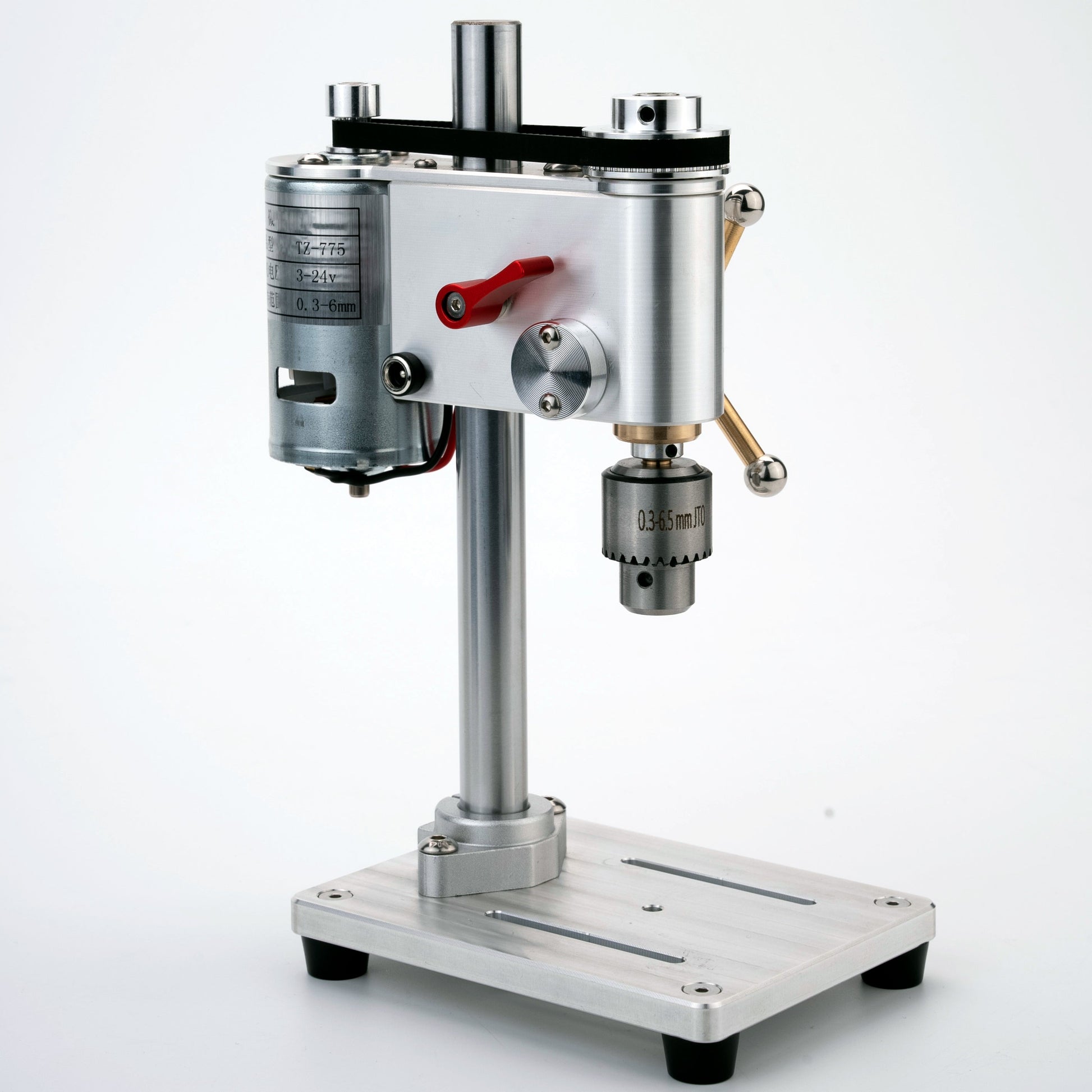

PowerPro 24v with Micometer:
It’s built for more complex tasks and handles tougher materials with ease, thanks to its powerful motor and gear-belt drive. With a voltage range from 3 to 24V and a clamping range of 0.3 to 6mm, this tool is ideal for precision work as well as demanding projects.
Specification:
- Belt type: synchronous belt
- Clamping range: 0.3-6mm
- Drill runout: 0.05mm
- Product size: 120 * 90 * 230mm
- Max clearance between drill chuck and base: ~150mm
- Weight: 1300g
- Column Diameter: 16mm
-
Column (Rod) Length: 230mm
- Drilling stroke: 19mm
- Height to workbench: 70mm
- Power supply (included): 3-24v / 2A (adjustable)
- Speed: 200-4800 RPM
- Voltage: 100-240V

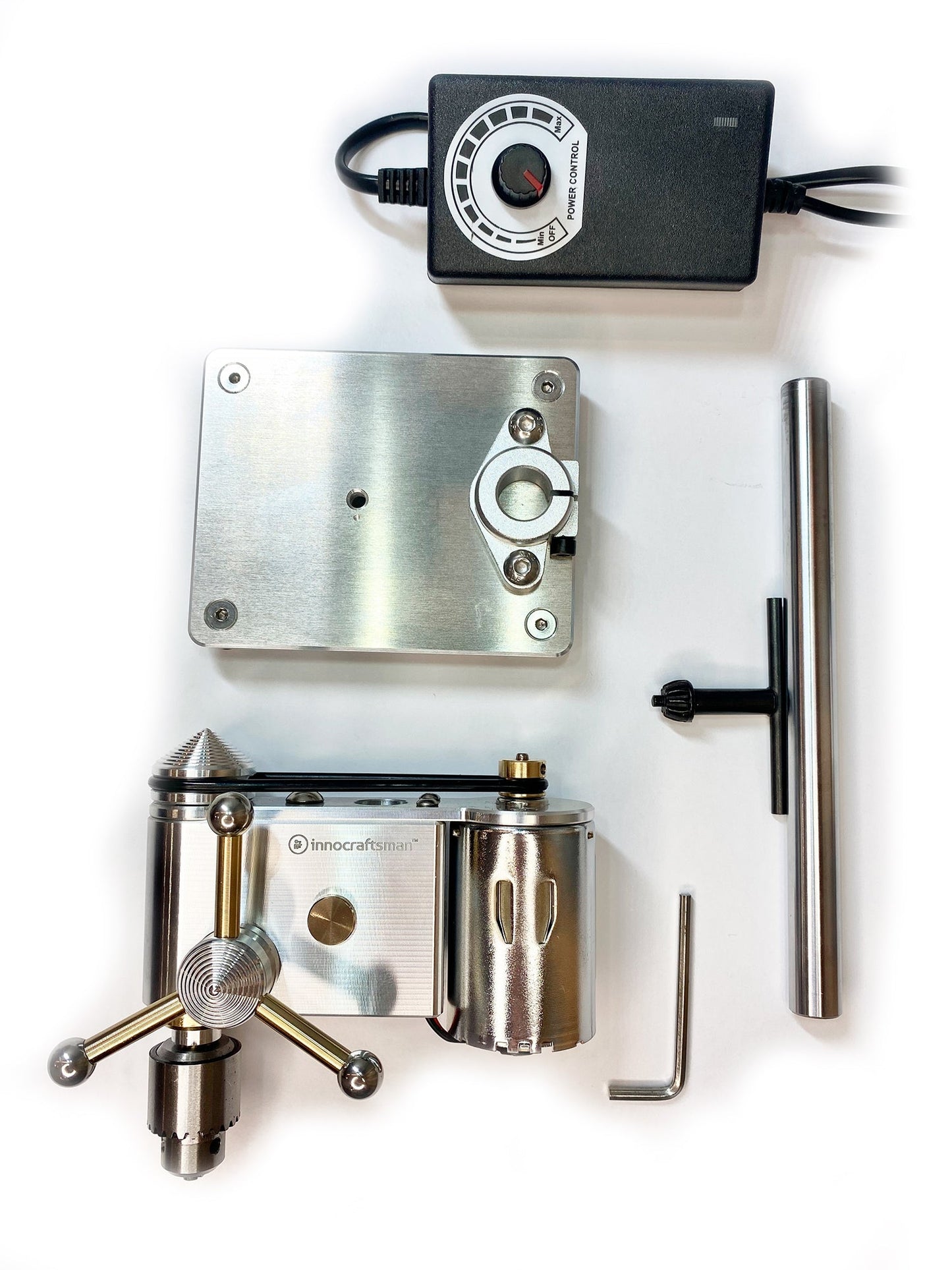

PACKAGE INCLUDED
